Analog & Digital Load Cells & Accessories

Capacities start from 5Kg to 500Kg

3000 / 6000 divisions OIML R60 class C

Fully stainless steel. Hermetically sealed, fully welded, Protection class IP68 and IP69K

Available in ATEX version (optional). Zone 0-1-2 (gas) with safety barriers and 20-21-22 (dust) without safety barriers

Application: Hybrid or scale conversions, Tank and hopper scales, Platform scales 4 cells, bagging machinery, belt scales and conveyor systems, Industrial applications in the harshest environments, International compatibility size

Available in Alloy steel & stainless steel

Capacities start from 300Kg to 10000Kg

3000 divisions OIML R60 class C. Hermetically sealed, fully welded, Protection class IP67/ IP68 and IP69K

Available in ATEX version (optional). Zone 0-1-2 (gas) with safety barriers and 20-21-22 (dust) without safety barriers

Application: Hybrid or scale conversions, Tank and hopper scales, Platform scales 4 cells, bagging machinery, belt scales and conveyor systems, Industrial applications in the harshest environments, International compatibility size

Compression load cell, self-centering column

Stainless steel construction

Hermetically welded, protection class IP68 and IP69K

Pre-corner adjustment optimized for multicell systems

Lightning protection

Available in ATEX version (optional). Zone 2 (gas) and 20-21-22 (dust)

Mounting assemblies are available in Mild steel & Stainless steel for different applications

Applications: High capacity weighing systems, Truck scales

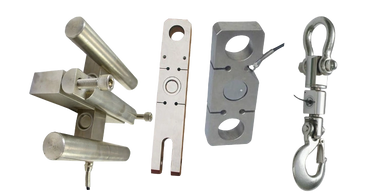

Tension/compression load cell

Measuring element from steel alloy. Protection class IP67

Capacities start from 50Kg to 6000Kg

3000 divisions OIML R60 class C

Applications: Suspended weighing Tanks and Hoppers, Suspended conveyor Belt Scales, Batching plants (Asphalt and Concrete), Force measurement in Test Equipment, Crane scales, Big bag (FIBC) filling machines

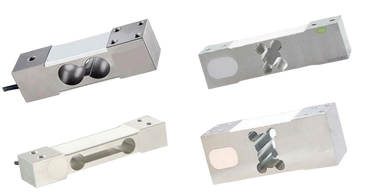

Capacities start from 0.3Kg to 1000Kg

Measuring element of aluminium/Alloy steel/Stainless steel

Highly accurate with off-center loads. Platform sizes up to 800mm x 800mm

Protection class IP66 / IP67

Available in ATEX version (optional). Zone 0-1-2 (gas) with safety barriers and 20-21-22 (dust) without safety barriers

Application: Platform scales, Check weighers, Packing and filling machines, Multihead weighers, Bench and hopper weighing

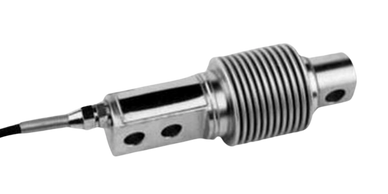

Measuring element from stainless steel

Hermetically sealed, fully welded. Protection class IP68

Easy installation. Mounting assembly available in Mild steel & Stainless steel

Available in ATEX version (optional). Zone 20-21-22 (dust).

Applications: Silo, hopper and tank weighing, Gravimetric level measurement, Platform scales, Universal Testing Machines (UTMs), Special Purpose Machines (SPMs)

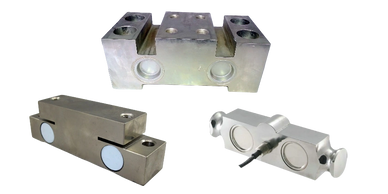

Double Ended Shear Beam Load Cells for Truck scales, Silo weighing, Crane Weighing, Elevator weighing, Ladle weighing & high temperature application

Double Ended Shear Beam Load Cells for Track scales, Silo weighing, Crane Weighing, Elevator weighing, Ladle weighing & high temperature application

Custom manufactured to customers’ requirements

Application: cranes, winches, agricultural equipment (such as tractors), fishing, marine, offshore, subsea, aerospace, process industries, mining, hoisting gear, elevators and floor conveyors, cable laying machinery etc.

Mounting assemblies for Bending Beam, Shear Beam, Compression load cells are available in Mild steel & Stainless steel for Tank / Silo weighing application

Junction Boxes for 2, 4, 6 or 8 load cells

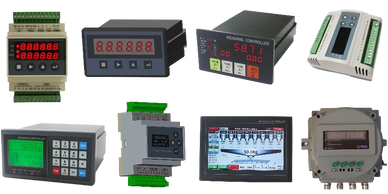

Simple weighing transmitters or high-speed transmitters with built-in weight indication, external communications, set points and dedicated checkweigher functions

Dedicated weighing controllers for batching, packing, weigh feeders, loss-in-weight feeders, filling, check weighing, crane weighing, truck weighing and axle weighing, with communications and relay outputs

PLCs, HMIs, Power Supply Unit, SMPS

Load cell tester with intelligent diagnostics

Crane [Wheel Crane, Travelling Crane, Frame Crane, BridgeCrane and so on] Overload Protection.

Sound-light Pre-alarm for Weight High Limit.

Delay-stop for Weight Higher Limit.

Emergency-stop for Weight Highest Limit.
